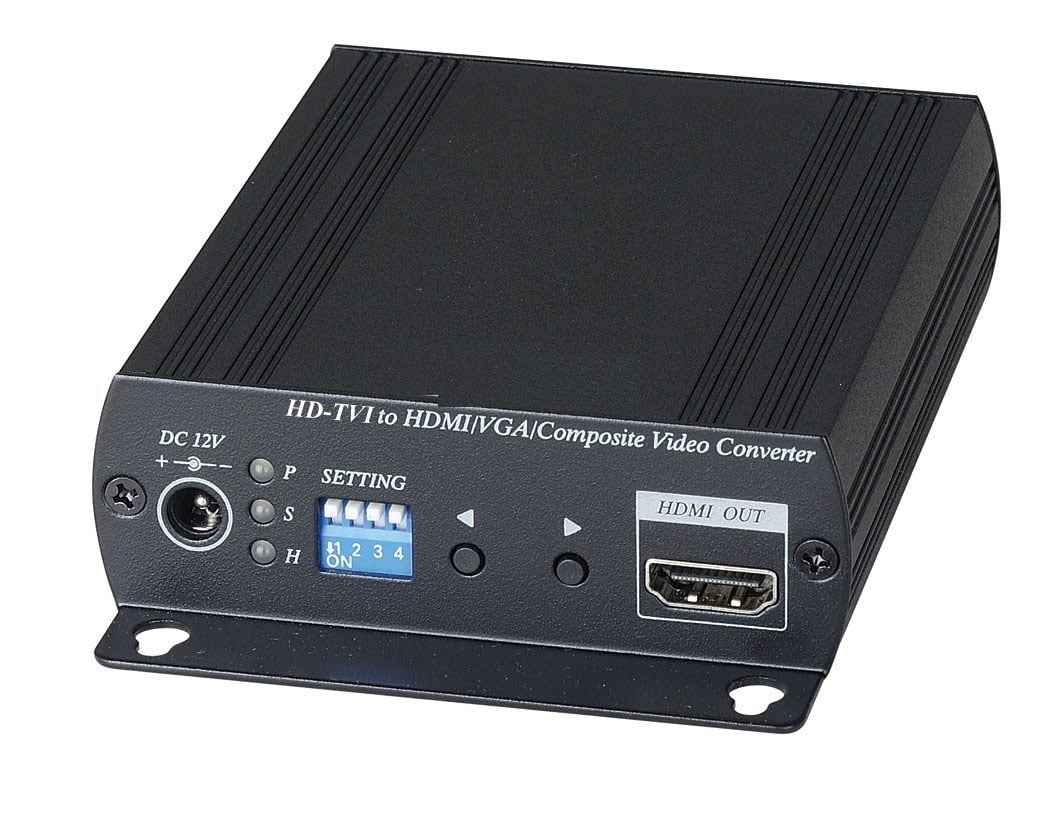

BlueCCTV CCTV HD TVI Video Converter Converters HDMI, BNC, VGA Three in One Supports PIP Loop Out

BlueCCTV CCTV HD TVI Video Converter Converters HDMI, BNC, VGA Three in One Supports PIP Loop Out

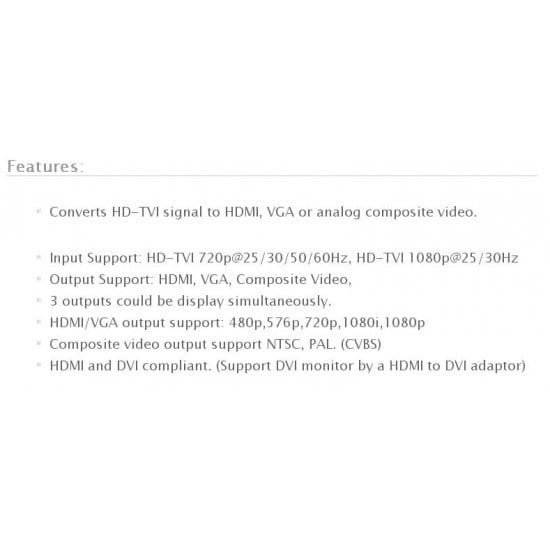

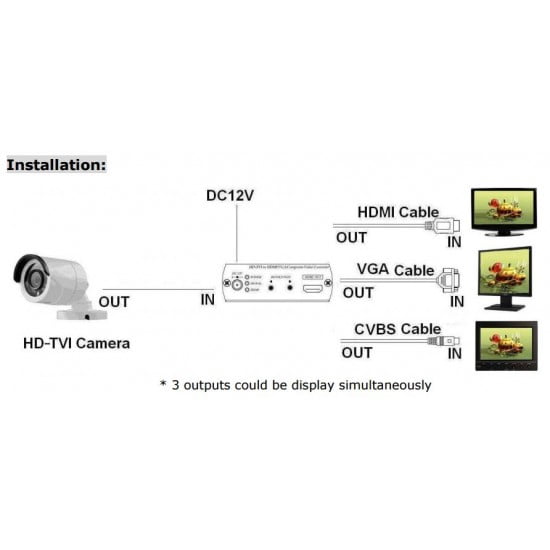

BL AD001-TVI converts HD-TVI signal to HDMI, VGA, Composite Video or HD-TVI loop out which enabling users to use cost effective HDMI/VGA/BNC monitor to display HD-TVI camera. It also supports 3 different output displays at same time. It is perfect solution when user wants to display HD-TVI camera to different monitor without HD-TVI DVR. The 2 IN/OUT function could works with 3 different function selections: CVBS output or HD-TVI loop out as a distributor function or as second HD-TVI input could be works as a switcher function with PIP feature to display 2 sources in one monitor.Converts HD-TVI signal to HDMI, VGA, Composite Video or HD-TVI loop out.Input support: HD-TVI 720p@25/30 and HD-TVI 720@50/60hz, 1080p@25/30HzOutput support: HDMI, VGA, Composite Video or HD-TVI loop out.3 outputs could be display simultaneously.BNC connector function selection: HD-TVI loop output, Composite Video output or as second HD-TVI input.Built in PIP (display two input picture) under dual HD-TVI input mode.HDMI/VGA output support: 480p,576p,720p,1080i,1080pComposite video output support NTSC, PAL.Composite output built in underscan adjustment. (allow the edges of the picture fit well)Built in OSD to display input/output setting.HDMI and DVI compliant. (support DVI monitor by a HDMI to DVI adaptor)Power Supply Include

Inputs/Outputs	HDMI, BNC, VGA
In/Out type	HDMI
Input/output direction	Output, Input
Accessories	Power Supply
Brand	BlueCCTV
Input/output quantity	3
Has written warranty	No
Height	1.9"
